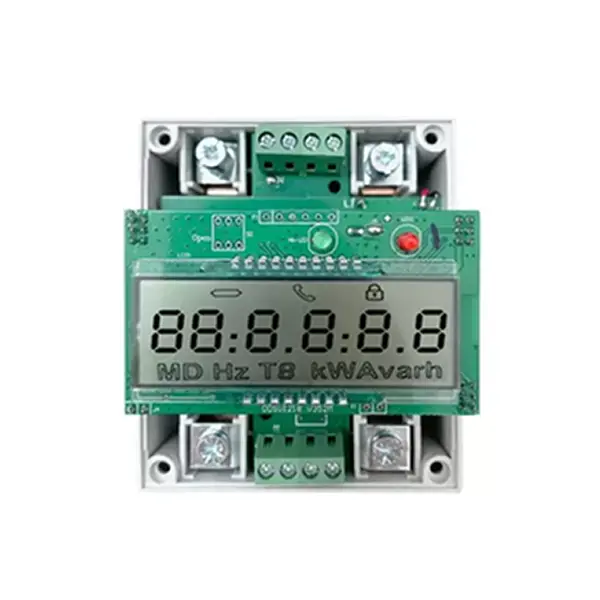

DIN-Rail Compact Energy Meter PCB
Product Description
This DIN-Rail Compact Energy Meter PCB is designed to be thin and compact so that it can fit into compact modular enclosures. It offers excellent measurement accuracy, thermal stability, and electrical insulation. It has well-placed SMT/THT components and optimized routing, which ensure high manufacturability and long-term reliability in compact meter systems.
Shipping
Shipping costs and delivery timelines to be negotiated—please contact us for a detailed quote.
Payments and Security
Your payment is handled through a secure system; we do not retain or have access to your credit card information.
Easy Return & Refund
If your order is missing or delivered with defect, you may request a refund. Our support team will respond within 24 hours.
| Layer Counts | 2–6 layers |
| Base Material | FR4 / High-TG FR4 |
| Board Thickness | 0.8–1.6 mm |
| Minimum PCB Size | 10*10mm |
| Maximum PCB Size | 570*1200mm |
| PCB Size Tolerance | ±0.2-0.3mm |
| Flammability Rating | UL94-V0 |
| Minimum Hole Size | 0.1mm |
| Minimum Line Width | 4mil |
| Copper Weight | 1–2 oz |
| Assembly Type | SMT / THT mixed |
| Certificate | IPC, IEC, ANSI, ISO9001, ISO13485 |
DIN-Rail Compact Energy Meter PCB
