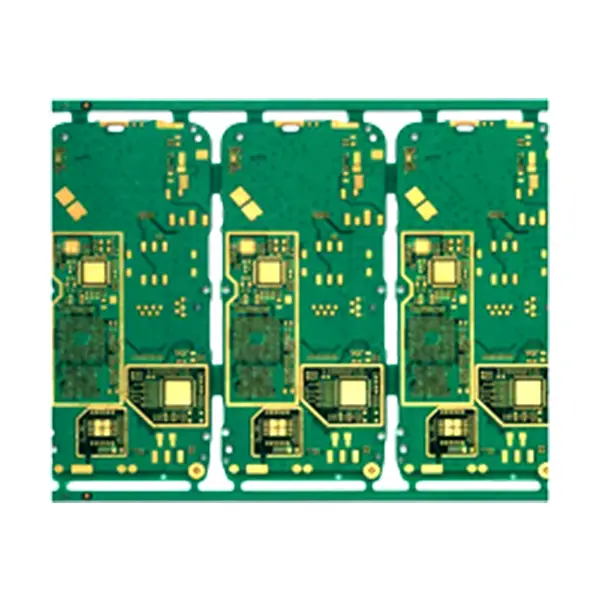

wholesale 8 layer hdi pcb prototype
Product Description
MOKO Technology’s Wholesale 8-Layer HDI PCB Prototype features ultra-fine traces, microvias (0.1mm), and optimized impedance control. This high-performance board is lightweight, compact, and supports high-speed signal transfer. It is widely used in 5G, AI, and IoT applications. Trust our ISO-certified manufacturing for scalable, reliable HDI PCB production with competitive bulk pricing and fast turnaround(as fast as 3 days).
Shipping
Shipping costs and delivery timelines to be negotiated—please contact us for a detailed quote.
Payments and Security
Your payment is handled through a secure system; we do not retain or have access to your credit card information.
Easy Return & Refund
If your order is missing or delivered with defect, you may request a refund. Our support team will respond within 24 hours.
| Layer Counts | 8 layers |
| Base Material | Rogers |
| Board Thickness | 1.6mm |
| Minimum PCB Size | 10*10mm |
| Maximum PCB Size | 570*670mm |
| PCB Size Tolerance | ±0.2-0.3mm |
| Minimum BGA Pad Size | 7mil |
| Minimum Hole Size | 0.1mm |
| Minimum Line Width | 4mil |
| Copper Weight | 2oz |
| Surface Finish | ENIG, HASL, OSP are available |
| Certificate | UL, IPC-6012, RoHS, ISO 9001, ISO14001 |
wholesale 8 layer hdi pcb prototype
| 5 star | 0% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
Sorry, no reviews match your current selections
Frequently Asked Questions
An HDI (High Density Interconnect) multi-layer PCB is a circuit board that uses microvias, blind vias, and buried vias to achieve higher component density and shorter trace lengths compared to traditional PCBs.
They support quick signal transmission, prevent much signal loss and electromagnetic interference, increase the heat dissipation of the board and allow for creating more advanced circuits without making the board larger.
The 2-16 layer hdi multi-layer PCB can be constructed from FR-4, Rogers and Megtron laminates.
Absolutely. We specialize in laser-drilled microvias, buried vias, blind vias, and impedance is controlled within +/-5% in order to suit high-frequency circuitry.
We offer turnkey PCBA ranging from component sourcing (from our partnered distributors or your BOM), bard board manufacturing, PCB assembly and quality checks.
We ship globally via DHL, FedEx, UPS, and other logistics partners. Shipping typically requires 3 to 7 days, which is decided by your geographical location.
